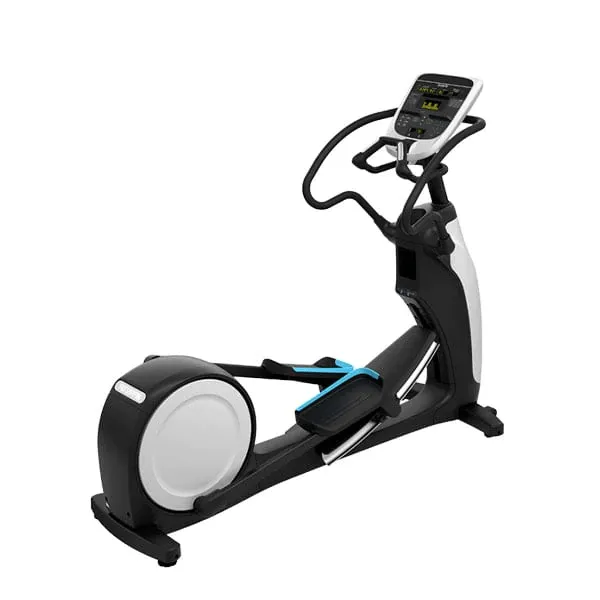

The EFX® 833 with Converging CrossRamp® combines reliability with a natural converging stride path to give you the perfect elliptical for your facility. Carrying on in the tradition of Precor reliability and service, the EFX is easy to clean and maintain with a covered ramp and rear drive housing, and Active Status Light - all to improve your ownership experience. For exercisers, the EFX 833 combines the benefits of our patented CrossRamp® technology and fixed handlebars for a total-body workout. The adjustable CrossRamp® technology offers ramp inclines from 10 to 35 degrees to target different muscle groups for more workout variety. And, our unique converging stride path allows the exerciser's footpath to converge naturally - just like walking or running. The P31 console features easy-to-use motion controls and an LED-based display that focuses on the essential fitness stats that keep users informed and engaged.
Converging CrossRamp® Technology
Our patented elliptical path follows a natural running stride with a movement that allows the user’s feet to converge toward the midline of their body. Users can isolate or crosstrain specific lower body muscle groups simply by adjusting the angle of the ramp, making it easy to target different muscle groups, encourage training variance and propel results.
Fixed Handlebars
Fixed handlebars allow users to focus on lower body workouts at higher resistance levels or challenge stabilizers during hands-free training.

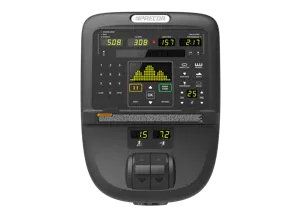

P31 Console
Finally, an LED console that works harder for you, your servicers, and your exercisers. Get integrated asset management to supercharge your service techs with extra information, right at their fingertips. Exercisers will enjoy the well-placed channel and volume change controls.
Equipment Features
| Covers | Long lasting appearance with covered ramp, enclosed rear covers, and covered frame and pivot joints. Covered ramp to prevent dirt and debris build-up. Easy to clean without removing the ramp cover or pedals. Rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension. Front covers can be removed in less than 2 minutes, providing quick access to lift assembly. |
| Accessories Holder(s) | Thoughtful, secure storage with a logical, clean place for your water bottle, cell phone, and other accessories. |
| Transport Wheels | Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor. |
| Biomechanics | Biomechanics validated by a Washington state university for users of all ages, fitness levels and sizes, from the 5% size female to the 95% size male user. |
| Bearings | Dual, in-line polyurethane wheels with over-sized axles and premium sealed bearings provide a perfectly balanced load, gliding on stamped, stainless steel tracks for an incredibly smooth feel. |
| Ramp | Converging Adjustable CrossRamp® |

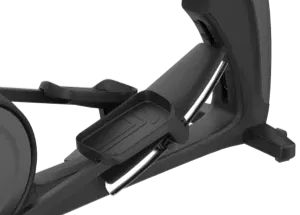

| Foot Pedals | Oversized, polypropylene foot pedals fit your largest user and are easy to clean. |
| Ramp Angle | 10-35° |
| Upper handlebars | Fixed Handlebars |
| CrossRamp® Technology | Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels. |
| CrossRamp® Technology | Adjustable |
Resistance System
| Minimum Watts | 18 watts |
| Maximum Watts | 720 watts |
| Resistance System | Durable, proven 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM). |
| Resistance Levels | 1-20 |
Equipment Specifications
| Stride Length at Minimum Incline (inches / cm) | 21 inches / 54 cm |
| Stride Length at Maximum Incline (inches / cm) | 25 inches / 63 cm |
| Maximum User Weight | 350 lbs / 159 kg |
| Minimum Space Between Foot Pedals (inches / cm) | 1.5 inches / 3.8 cm |
| Foot Pedal Dimensions (inches / cm) | 16 X 8 inches / 40.6 X 20.3 cm |
| Step-up Height (footplate at lowest position) | 8 inches / 20 cm |
| Standard Frame Colors | Gloss Metallic Silver Black Pearl |
Console Features
| Numeric Keypad | Yes |
| Motion Controls | Yes |
| Tactile Dome Keys | Yes |
| QuickStart™ | Yes |
| Units Selection | Metric or U.S. Standard |
| Console Language(s) | English, French, German, Italian, Japanese, Portuguese, Russian, Spanish |
| Electronic Readouts | Resistance Level CrossRamp Level Distance, Strides / Min, Total Strides Calories Heart Rate Time Remaining, Time Elapsed % Complete Time in Zone Segment Time Remaining Average Speed (strides per min) Calories / min Calories / hour Watts METS Target HR Average HR Stride Length |
| Maximum Workout Time | Unlimited |
| Electronic Readouts | 21 |
| Preset Programs | 15 programs accessed directly by 6 buttons: Manual Interval Interval Total Body Interval Variety Cross Country 1 Gluteal 2 Gluteal Custom Performance Hill Climb Fitness Test 1 Cross Training 2 Cross Training 3 Cross Training Navy Fitness Test Heart Rate Basic HRC Weight Loss |
| Muscle Monitor | Shows muscle recruitment related to change in CrossRamp |
| Pause Range | 1 to 60 seconds |
| Default Pause Setting | 30 seconds |
Heart Rate Monitoring
| Touch | Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes. |
| Telemetry | Equipped for heart rate telemetry reading using a chest strap. |
| Heart Rate Sensor Advisory |
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our . |
Network Capabilities
| Diagnostics | Ability to set club parameters, e.g. to limit exercise time and pause time. |
| CSAFE Ready | Yes |
Equipment Dimensions and Weight
| Height with PVS | 81 inches / 206 cm |
| Length | 80 inches / 203 cm |
| Width | 28 inches / 71 cm |
| Height | 69 inches / 175 cm |
| Equipment Weight | 330 lb / 150 kg |
Shipping Dimensions and Weight
| Length | 85 inches / 216 cm |
| Width | 31 inches / 78 cm |
| Height | 28 inches / 71 cm |
| Shipping Weight | 396 lbs / 180 kg |
Power Requirements
| Equipment | Self-Powered |
| International 240 VAC | country-specific power cord |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| Personal Viewing Screen (PVS) | Powered |
| Optional Power Supply | Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
Regulatory
| FCC | FCC |
| ETL | ETL |
| CE | CE |
| EN957 | EN957 / ASTM |
Integrated Entertainment Options
| Reading Rack | Standard |
| Personal Viewing System (PVS) | Optional |
| Personal Viewing Screen (PVS) (Specification) | 15.6 inch/ 39.6 cm screen |
| Entertainment Cap / Wireless Receiver | Optional |
