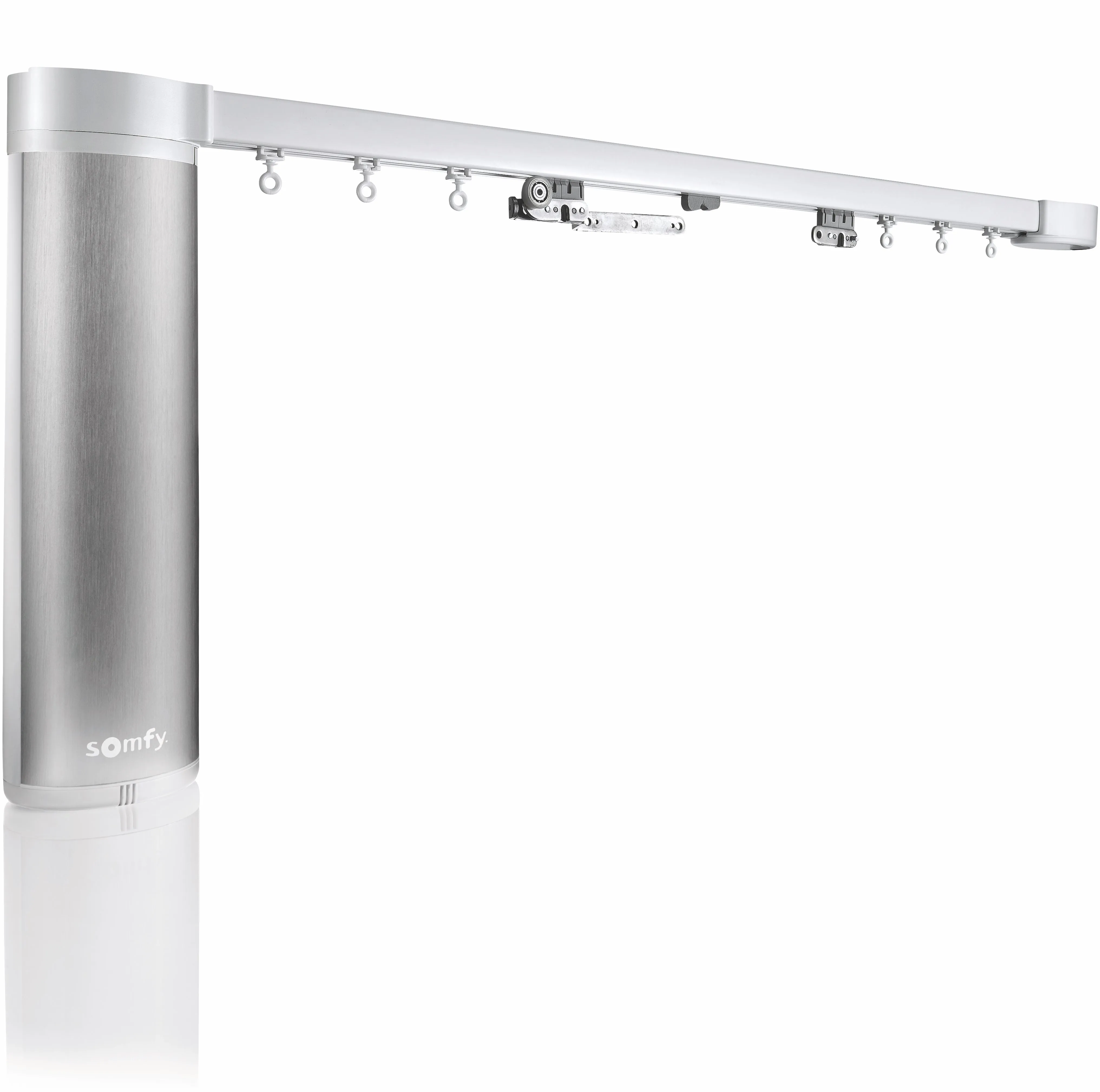

Glydea 60 RTS Drapery Motorized Drapery Track System 1246118
Somfy specialized motors and electronic controls for residential and commercial interior and exterior window coverings.
Somfy Glydea 60 RTS is the solution for your Motorized Drapes,Motorized Drapery Rods, Motorized Drapery Tracks.
- Fully Assembled Track - Made to your exact measurements.
- Gyldea motorized tracks are custom built according to the specified widith . Please note thefinisihed track width is measured pulley end to pulley end
- Available in Pinch Pleat, Ripplefold or Accordia Drapery Style
- Available Center, Left or Right Draw
- Wall or Ceiling Mounted Plugs Directly Into 110V Wall Outlet
- Manual Override Allows Drapery To Be Hand Drawn In the Event Of Power Outage
- RTS Radio Technology Somfy – Works With all Somfy RTS controls
- Fabric weight up to 132 lbs - 36 ft Maximum span
1246118 Rplaces Somfy Number: 1001617
Technical information
STANDARD
|
| Protection Index |
IP 30 |
TECHNOLOGY
|
| Number of channels |
12 |
ELECTRICAL
|
| Consumption during operation |
60 W |
| Minimum voltage |
100 V |
| Maximum voltage |
240 V |
| Rated current |
1 A |
| Power supply |
AC - RGE 8 - 90-240V/50-60HZ |
MECHANICAL
|
| Speed |
105 rpm |
| Torque |
1 Nm |
| Power scale |
DC MOTOR 37,5W TO 750 W |
| Head type |
WITHOUT HEAD |
CABLE
|
| Cable type |
VVF |
| Cable length |
9.84 ft |
| Cable color |
WHITE |
| Number of wires of the cable |
3 |
| Cable plug ends |
NEMA PLUG |
| Wire section |
0.0012 in² |
OTHER
|
| Minimum working temperature |
32 °F |
| Maximum working temperature |
140 °F |
| Minimum storing temperature |
-22 °F |
| Maximum storing temperature |
176 °F |
| Thermical time |
5 min |
| Shape |
OVAL CURTAIN |
| Noise level (dB) |
38 dB |
| Approval |
CTUVUS |
